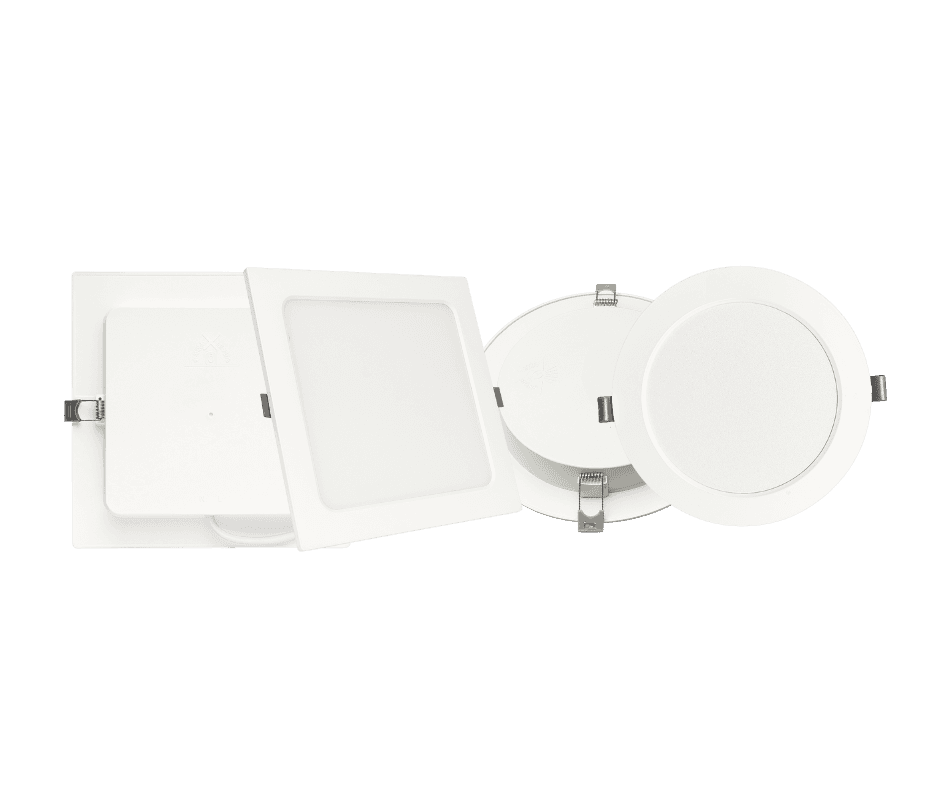

IGNIS Series PP LED Recessed Panel Lights Round/Square
SKU: 500000003838
Choose your options
Specs from Orient Lighting Catalogue 2026–27 (p.8).
Style
Size
Wattage
Color temperature
Catalogue specs · p.8
Ignis Series Recessed Panel (Back Lit)
- Model
- OL-RPL07SRD
- Wattage
- 7W
- Lumens
- 630 lm
- Color temperature
- Daylight/6500K
How many do I need?
Enter room size to estimate quantity from lumen target (630 lm per unit).
Room: 120 sq ft · Target: 1,800 lumens
3 units needed
Based on 630 lm per unit and living room lighting level. Actual needs vary with ceiling height, paint color, and fixture placement.
Description
Ignis Series Recessed Panel (Back Lit) — from Orient Lighting Catalogue 2026–27 (p.8).

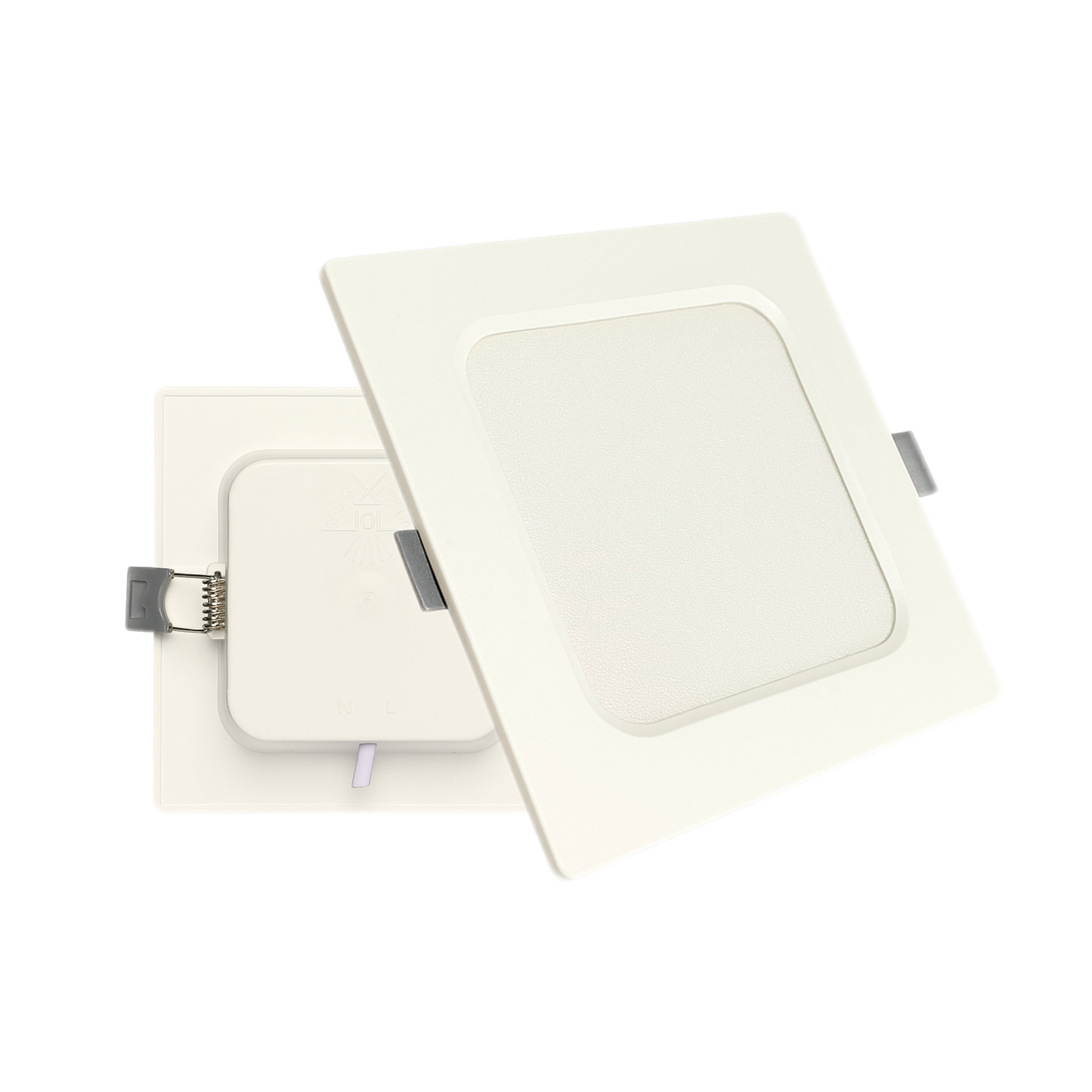

Ignis recessed round/square back-lit panels for uniform indoor ceiling light.
Catalogue specifications
| Model | Watts | Lumens | Notes |
|---|---|---|---|
| OL-RPL07SRD | 7W | 630 lm | Round · cut-out ~100 mm |
| OL-RPL12SRD/SQ | 12W | 1200 lm | Round/Square |
| OL-RPL18SRD/SQ | 18W | 1800 lm | Round/Square |
| OL-RPL24SRD/SQ | 24W | 2400 lm | Round/Square |
Features
- Back-lit panel
- Round & square shapes
- CCT 3000/4000/6500K
Electrical & performance
- PF 0.7
- IP20
- CRI ≥80
- Surge 2.5KV
- Life 25,000 H
- Voltage 85–256V
- Beam 120°
Applications
Home, Shop, Office, Restaurant, Lobby
Warranty: 1 year
Specs sourced from the official Orient Lighting product catalogue PDF.
