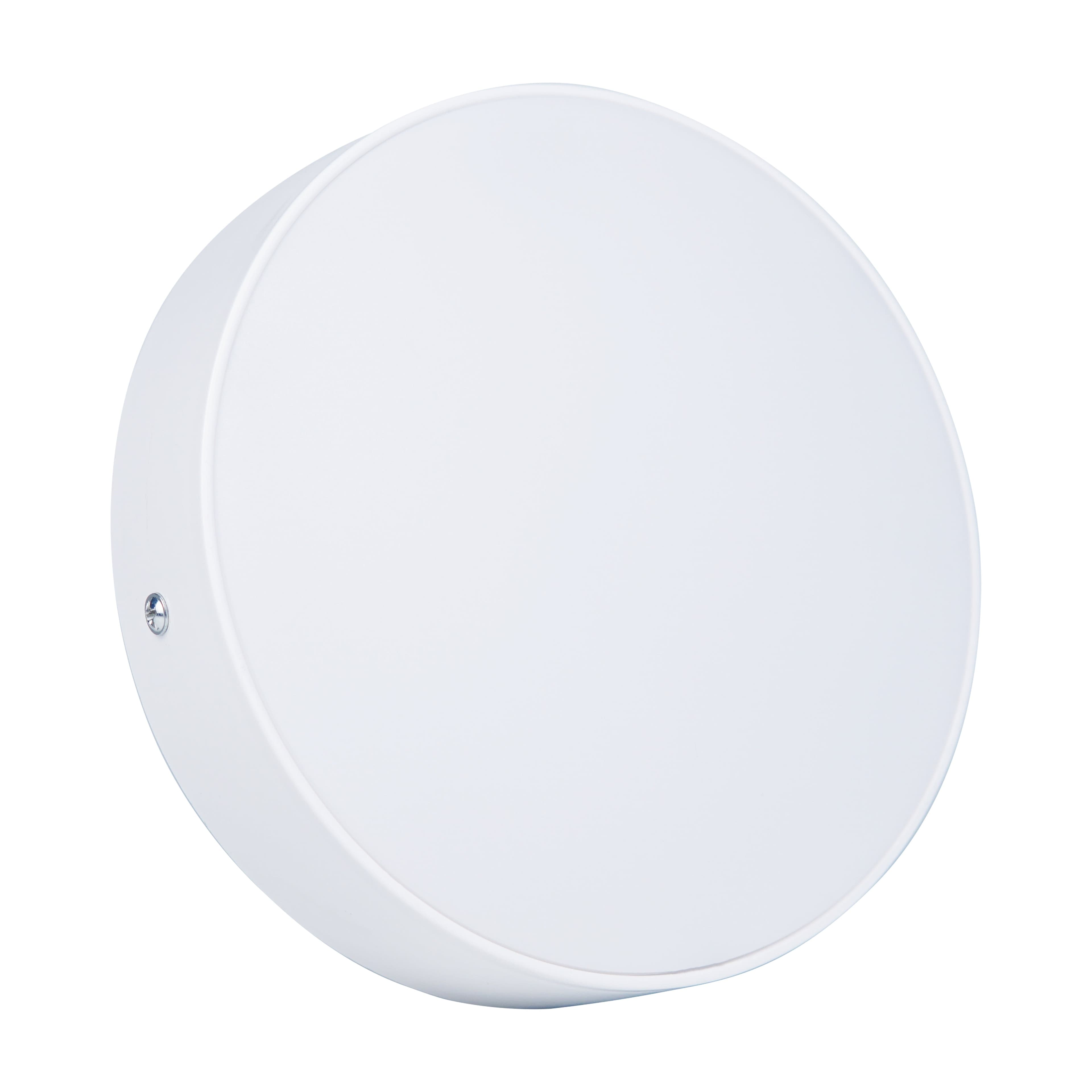

IGNIS PRO THIN BORDER SURFACE PANEL
SKU: 500000003817
Choose your options
Specs from Orient Lighting Catalogue 2026–27 (p.9).
Wattage
Color temperature
Catalogue specs · p.9
Ignis Pro Thin Border Surface Panel
- Model
- OL-SPL24IPRD/SQ
- Wattage
- 24W
- Lumens
- 2,400 lm
- Color temperature
- Daylight/6500K
How many do I need?
Enter room size to estimate quantity from lumen target (2,400 lm per unit).
Room: 120 sq ft · Target: 1,800 lumens
1 unit needed
Based on 2,400 lm per unit and living room lighting level. Actual needs vary with ceiling height, paint color, and fixture placement.
Description
Ignis Pro Thin Border Surface Panel — from Orient Lighting Catalogue 2026–27 (p.9).
Ignis Pro rimless surface panels with polycarbonate housing, backlight optics and higher PF.
Catalogue specifications
| Model | Watts | Lumens | Notes |
|---|---|---|---|
| OL-SPL24IPRD/SQ | 24W | 2400 lm | Round/Square · rimless |
| OL-SPL36IPRD/SQ | 36W | 3600 lm | Round/Square · rimless |
Features
- Rimless design
- Polycarbonate housing & diffuser
- DOB heatsink
- Backlight technology
Electrical & performance
- PF 0.9
- IP20
- CRI ≥80
- Surge 2.5KV
- Life 30,000 H
- Voltage 85–256V
Applications
Shop, Restaurant, Hotel, Museum, Lobby
Warranty: 2 years
Specs sourced from the official Orient Lighting product catalogue PDF.
