Moon light Series Recessed Panel
SKU: 500000000131
Choose your options
Specs from Orient Lighting Catalogue 2026–27 (p.10).
Size
Wattage
Color temperature
Catalogue specs · p.10
Moon Light Recessed Panel
- Model
- OL-RBL12RD
- Wattage
- 12W
- Lumens
- 1,080 lm
- Color temperature
- Warm light/3000K
How many do I need?
Enter room size to estimate quantity from lumen target (1,080 lm per unit).
Room: 120 sq ft · Target: 1,800 lumens
2 units needed
Based on 1,080 lm per unit and living room lighting level. Actual needs vary with ceiling height, paint color, and fixture placement.
Description
Moon Light Recessed Panel — from Orient Lighting Catalogue 2026–27 (p.10).

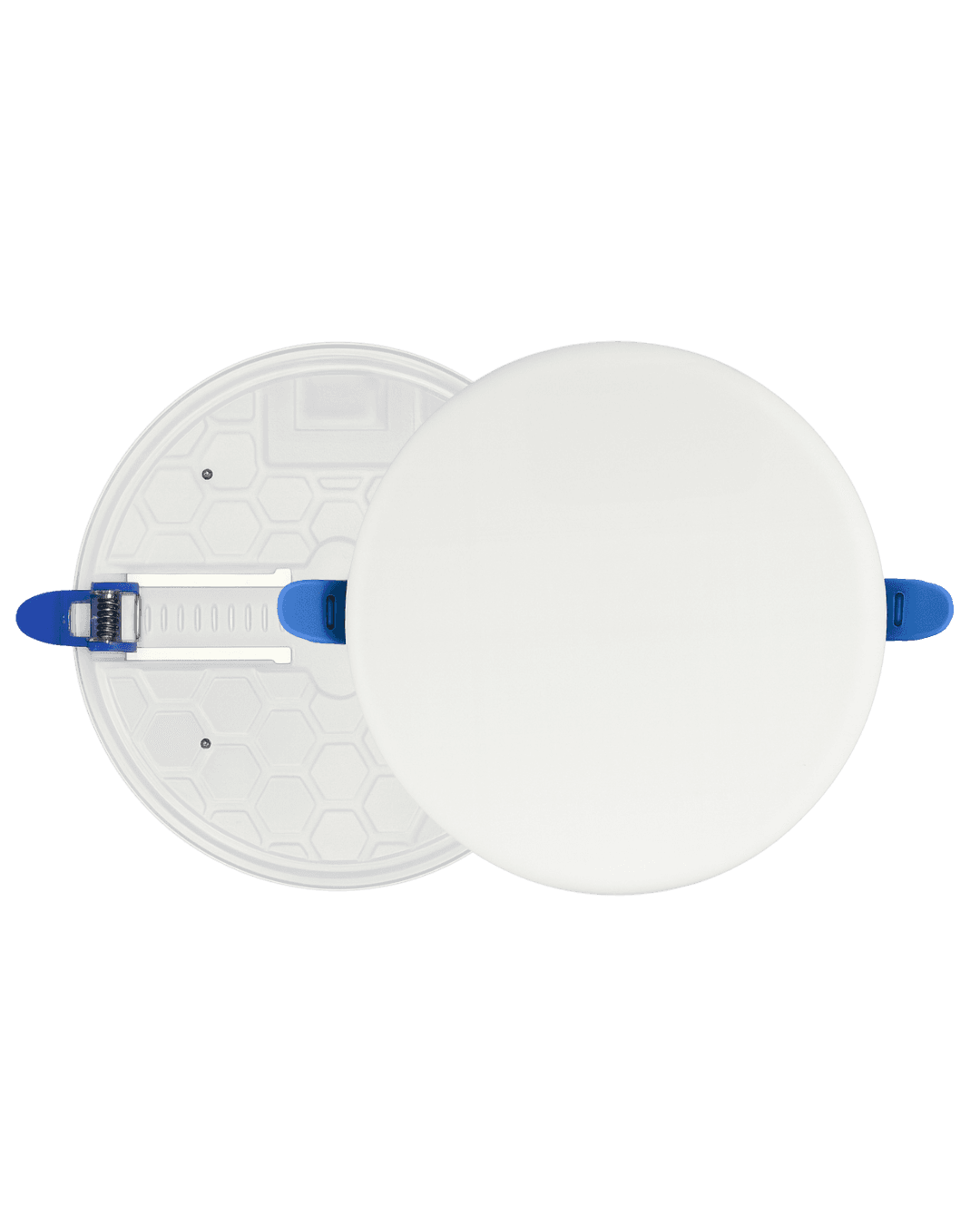

Slim circular Moon Light recessed panels for modern interiors.
Catalogue specifications
| Model | Watts | Lumens | Notes |
|---|---|---|---|
| OL-RBL12RD | 12W | 1080 lm | Ø90×20 · cut-out 50–70 mm |
| OL-RBL18RD | 18W | 1620 lm | Ø123×20 · cut-out 50–90 mm |
| OL-RBL24RD | 24W | 2160 lm | Ø175×20 · cut-out 50–130 mm |
| OL-RBL36RD | 36W | 3240 lm | Ø225×20 · cut-out 50–190 mm |
Features
- Borderless circular face
- CCT 3000/4000/6500K
Electrical & performance
- PF 0.5
- IP20
- CRI ≥80
- Surge 2.5KV
- Life 25,000 H
- Voltage 85–256V
- Beam 120°
Applications
Shop, Restaurant, Hotel, Museum, Lobby
Warranty: 1 year
Specs sourced from the official Orient Lighting product catalogue PDF.
