ADVANLUX LED STREET LIGHT
Rs. 45,500
Choose your options
Specs from Orient Lighting Catalogue 2026–27 (p.23).
Wattage
Color temperature
Catalogue specs · p.23

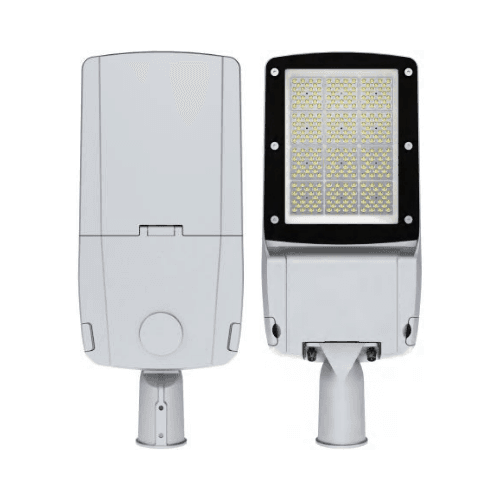

AdvanLux LED Street Light
- Wattage
- 120W
- Lumens
- 16,800 lm
- Color temperature
- Daylight/6500K
How many do I need?
Enter room size to estimate quantity from lumen target (16,800 lm per unit).
Room: 120 sq ft · Target: 1,800 lumens
1 unit needed
Based on 16,800 lm per unit and living room lighting level. Actual needs vary with ceiling height, paint color, and fixture placement.
Description
AdvanLux LED Street Light — from Orient Lighting Catalogue 2026–27 (p.23).
Premium AdvanLux roadway luminaires with Lumileds LEDs, Inventronics/Meanwell drivers and Type II–IV optics.
Catalogue specifications
| Model | Watts | Lumens | Notes |
|---|---|---|---|
| — | 30W | 4,200 lm | 471×196×86 · ~140 lm/W |
| — | 50–60W | 7,000 lm | 471×196×86 |
| — | 80W | 11,200 lm | 527×196×87 |
| — | 100W | 14,000 lm | 527×196×87 |
| — | 120W | 16,800 lm | 537×244×87 |
| — | 150W | 21,000 lm | 537×244×87 |
| — | 180W | 25,200 lm | 590×244×87 |
| — | 200W | 28,000 lm | 590×244×87 |
| — | 240W | 33,600 lm | 590×244×87 |
Features
- ADC12 die-cast aluminium + powder coat
- Tempered glass + PC optics (Types II–IV)
- Inventronics / Meanwell / Philips drivers
- Philips Lumileds chips
- Spigot mount; optional photocell / Zhaga / NEMA
- 0–10V dimmable or non-dimmable
- IK08 · Class I/II optional
Electrical & performance
- PF >0.90
- IP66
- Ra70 (Ra80 optional)
- 85–305Vac 50/60Hz
- Surge 6kV L-L / 10kV L-E
- Life >50,000 H (Ta=30°C @ L70)
- THD 10%
Applications
Street lighting, Highways, Municipal roads
Warranty: Up to 5 years (driver selection)
Specs sourced from the official Orient Lighting product catalogue PDF.
