Astro Series Double Batten
SKU: 500000000174
Rs. 830
Size / length: 2ft
Choose your options
Specs from Orient Lighting Catalogue 2026–27 (p.13).
Wattage
Color temperature
Catalogue specs · p.13
Astro Series Double Batten
- Model
- OL-DB20U
- Wattage
- 20W
- Lumens
- 2,000 lm
- Color temperature
- Warm light/3000K
How many do I need?
Enter room size to estimate quantity from lumen target (2,000 lm per unit).
Room: 120 sq ft · Target: 1,800 lumens
1 unit needed
Based on 2,000 lm per unit and living room lighting level. Actual needs vary with ceiling height, paint color, and fixture placement.
Description

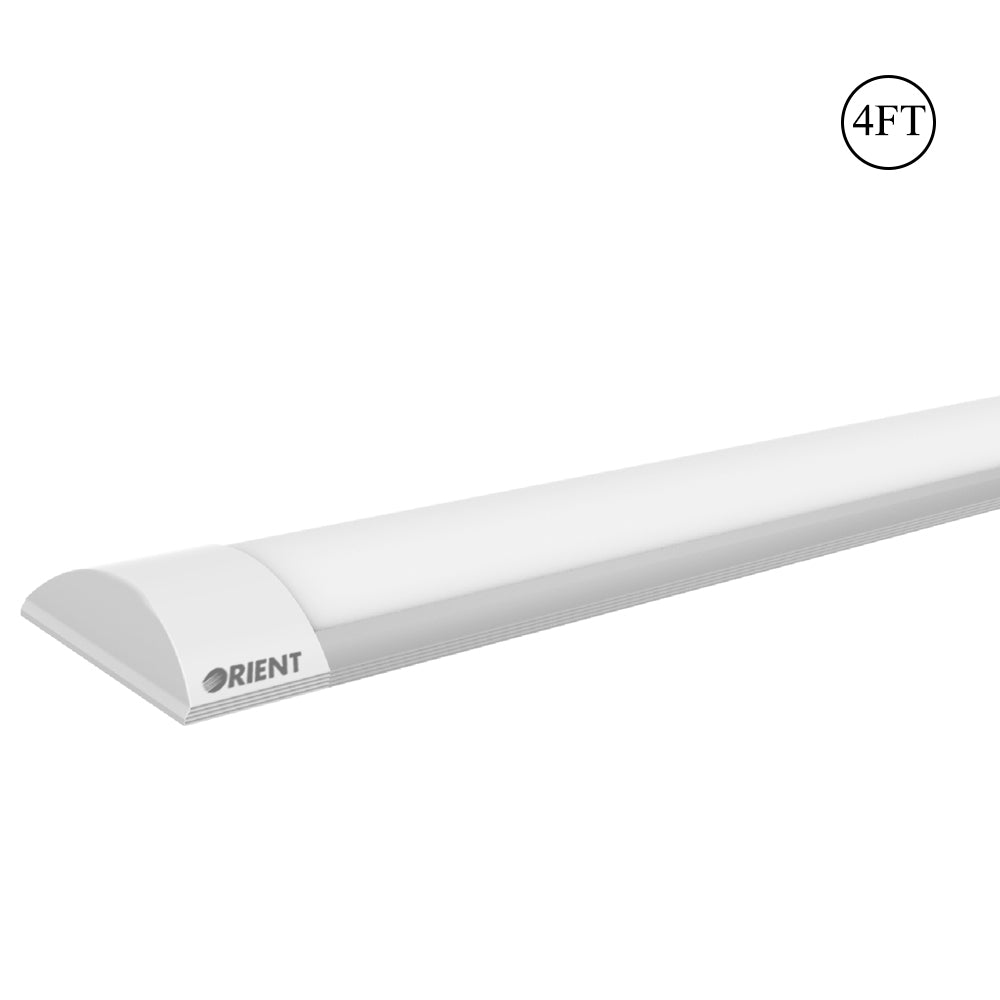

Astro Series Double Batten
Surface-mounted Astro Series Double Battens with High Grade Polycarbonate Housing.
Specifications
| Model | Wattage | Shape | Lumens | Housing Material | Size |
|---|---|---|---|---|---|
| OL-DB20U | 20W | Rounded Rectangular Profile | 100 lm/W | PC + Aluminium | 28 × 55 × 600 mm |
| OL-DB40U | 40W | Rounded Rectangular Profile | 100 lm/W | PC + Aluminium | 28 × 55 × 1200 mm |
| OL-DB60U | 60W | Rounded Rectangular Profile | 100 lm/W | PC + Aluminium | 28 × 66 × 1200 mm |
Features
- High-strength PC body with aluminium inner shell
- Surface-mounted design
- CCT: 3000K / 4000K / 6500K
Electrical & Performance
- Power Factor: 0.6
- IP Rating: IP20
- CRI: ≥80
- Surge Protection: 2.5KV
- Lifetime: 25,000 Hours
- Input Voltage: 85–256V
- Beam Angle: 120°
Applications
Shop, Living Room, Restaurant, Hotel, Museum, Lobby
Warranty: 1 Year
