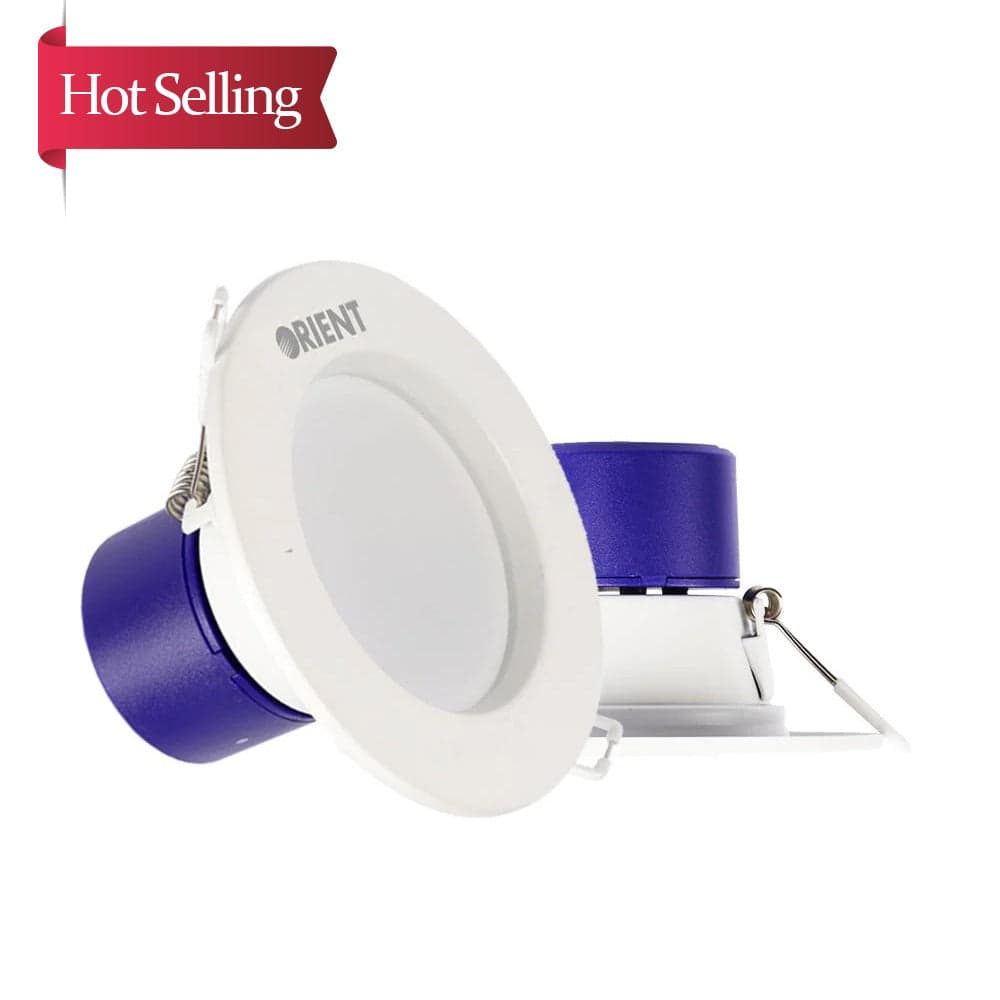

BLUE MOON SMD ROUND
SKU: 500000000028
Rs. 330
Size / length: 3"
Choose your options
Specs from Orient Lighting Catalogue 2026–27 (p.6).
Wattage
Color temperature
Catalogue specs · p.6
Blue Moon Downlights (SMD)
- Model
- OL-DL07LS
- Wattage
- 7W
- Lumens
- 560 lm
- Color temperature
- Warm light/3000K
How many do I need?
Enter room size to estimate quantity from lumen target (560 lm per unit).
Room: 120 sq ft · Target: 1,800 lumens
4 units needed
Based on 560 lm per unit and living room lighting level. Actual needs vary with ceiling height, paint color, and fixture placement.
Description
Blue Moon Downlights (SMD)
Recessed Blue Moon SMD/COB downlights for shops, hospitality and lobbies.
Specifications
| Model | Wattage | Shape | Lumens | Housing Material | Size |
|---|---|---|---|---|---|
| OL-DL07LS | 7W | Round | 560 lm | Aluminium | Hole Ø90 mm |
| OL-DL12LS | 12W | Round | 960 lm | Aluminium | Hole Ø90 mm |
| OL-DL12LS6 | 12W | Round | 960 lm | Aluminium | Hole Ø150 mm |
| OL-DL18LS | 18W | Round | 1440 lm | Aluminium | Hole Ø200 mm |
Features
- SMD / COB options
- Recessed installation
- Wide 120° beam angle
- Available in 2700K / 4000K / 6500K
Electrical & Performance
- Power Factor: 0.6
- IP Rating: IP20
- CRI: ≥80
- Surge Protection: 2.5KV
- Lifetime: 25,000 Hours
- Input Voltage: 85–256V
Applications
Shop, Restaurant, Hotel, Museum, Lobby
Warranty: 1 Year
