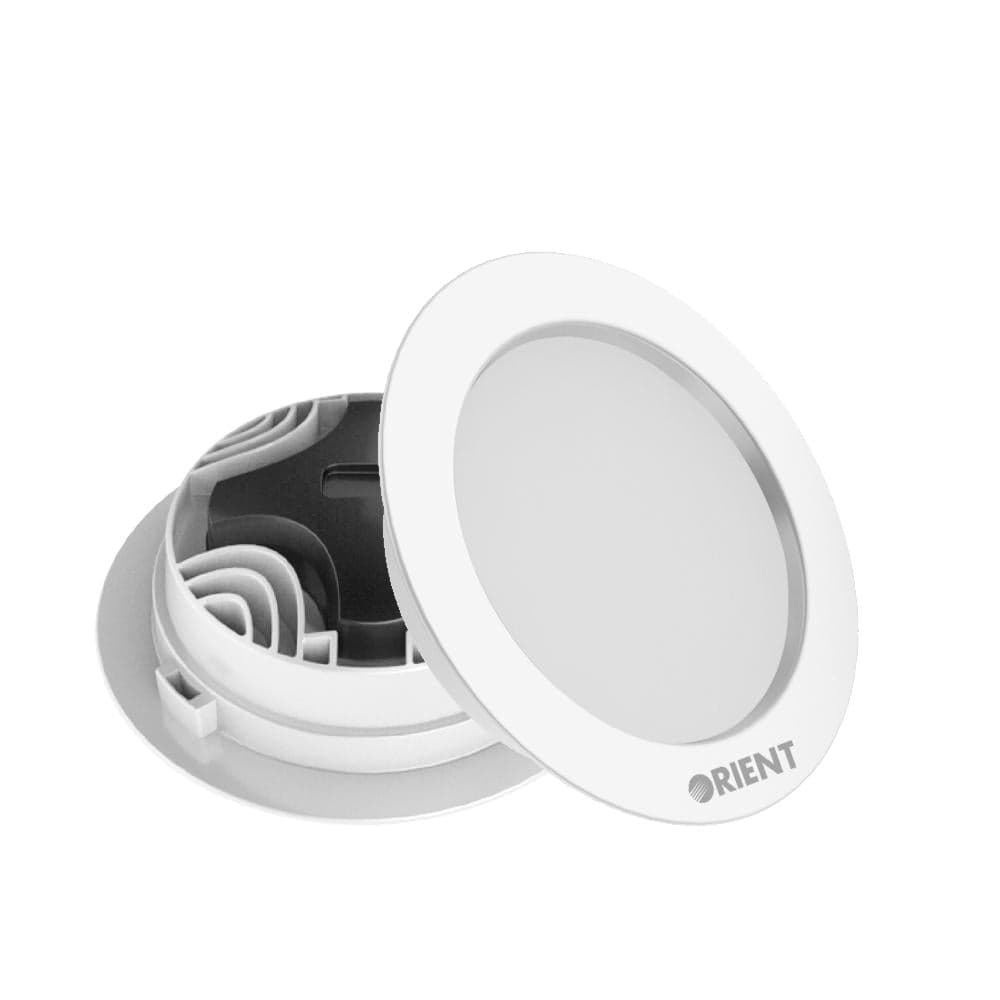

BRIGHT MOON SMD
SKU: 300000000548
Rs. 1,340
Choose your options
Specs from Orient Lighting Catalogue 2026–27 (p.6).
Wattage
Color temperature
Catalogue specs · p.6
Bright Moon SMD Downlights
- Wattage
- 12W
- Lumens
- 840 lm
- Color temperature
- Daylight/6500K
How many do I need?
Enter room size to estimate quantity from lumen target (840 lm per unit).
Room: 120 sq ft · Target: 1,800 lumens
3 units needed
Based on 840 lm per unit and living room lighting level. Actual needs vary with ceiling height, paint color, and fixture placement.
Description
Bright Moon SMD Downlights — from Orient Lighting Catalogue 2026–27 (p.6).
Bright Moon recessed SMD downlights with multiple wattages and cut-out sizes.
Catalogue specifications
| Model | Watts | Lumens | Notes |
|---|---|---|---|
| — | 5W | 350 lm | Hole Ø75 mm |
| — | 7W | 500 lm | Hole Ø75 mm |
| — | 12W | 840 lm | Hole Ø90 mm |
| — | 18W | 1260 lm | Hole Ø165 mm |
| — | 24W | 1680 lm | Hole Ø165 mm |
Features
- SMD / COB
- CCT 2700/4000/6500K
- 120° beam
Electrical & performance
- PF 0.6
- IP20
- CRI ≥80
- Surge 2.5KV
- Life 25,000 H
- AC 90–260V
Applications
Shop, Restaurant, Hotel, Museum, Lobby
Warranty: 1 year
Specs sourced from the official Orient Lighting product catalogue PDF.
