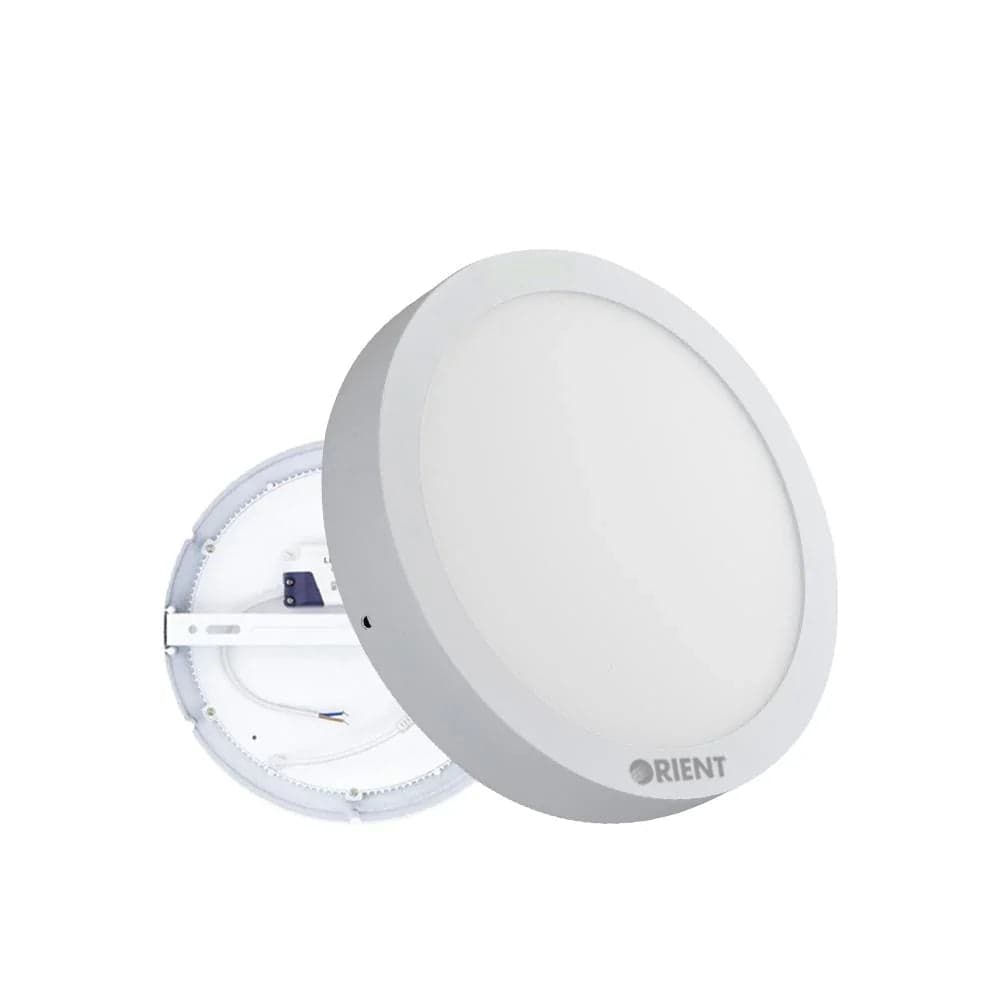

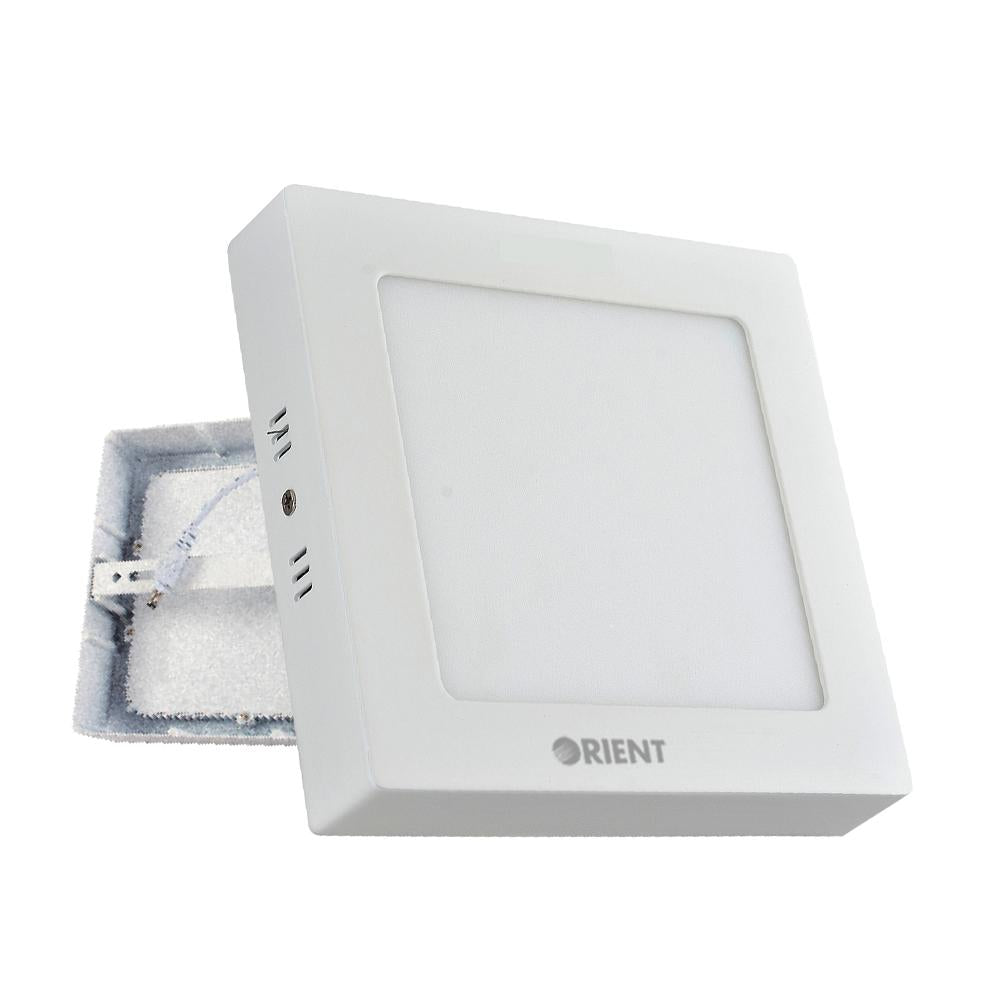

ALU SURFACE PANEL LIGHT ROUND/SQUARE
SKU: 300000000273
Choose your options
Specs from Orient Lighting Catalogue 2026–27 (p.9).
Style
Size
Wattage
Color temperature
Catalogue specs · p.9
Alu Surface Panel Light Round/Square
How many do I need?
Enter room size to estimate quantity from lumen target (2,400 lm per unit).
Room: 120 sq ft · Target: 1,800 lumens
1 unit needed
Based on 2,400 lm per unit and living room lighting level. Actual needs vary with ceiling height, paint color, and fixture placement.
Description
Alu Surface Panel Light Round/Square — from Orient Lighting Catalogue 2026–27 (p.9).
Aluminium surface panels matching Ignis surface catalogue range.
Catalogue specifications
| Model | Watts | Lumens | Notes |
|---|---|---|---|
| OL-SPL12ISRD/SQ | 12W | 1200 lm | Round/Square |
| OL-SPL18ISRD/SQ | 18W | 1800 lm | Round/Square |
| OL-SPL24ISRD/SQ | 24W | 2400 lm | Round/Square |
Features
- Surface mount
- Backlight technology
- DOB heatsink housing
Electrical & performance
- PF 0.7
- IP20
- CRI ≥80
- Surge 2.5KV
- Life 25,000 H
- Voltage 85–256V
Applications
Shop, Restaurant, Hotel, Museum, Lobby
Warranty: 1 year
Specs sourced from the official Orient Lighting product catalogue PDF.
