TILE CEILING PANEL LIGHT SQUARE 2x2 SIDE LIGHT
SKU: 300000000370
Rs. 6,860
Choose your options
Specs from Orient Lighting Catalogue 2026–27 (p.11).
Wattage
Color temperature
Catalogue specs · p.11
2×2 Tile Ceiling Panel (Side Light)
- Model
- OL-PL36SQ
- Wattage
- 36W
- Lumens
- 4,320 lm
- Color temperature
- Daylight/6500K
How many do I need?
Enter room size to estimate quantity from lumen target (4,320 lm per unit).
Room: 120 sq ft · Target: 1,800 lumens
1 unit needed
Based on 4,320 lm per unit and living room lighting level. Actual needs vary with ceiling height, paint color, and fixture placement.
Description

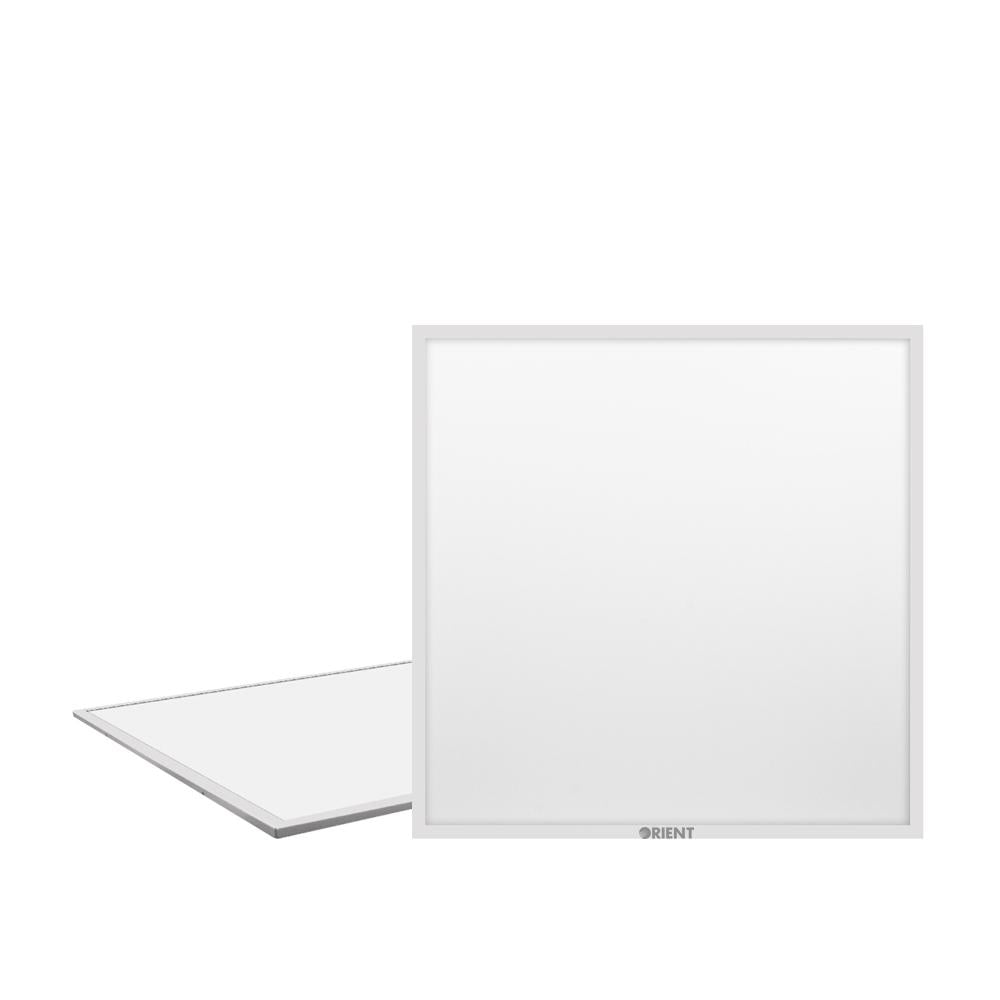

2×2 Tile Ceiling Panel (Side Light) — from Orient Lighting Catalogue 2026–27 (p.11).
600×600 side-lit tile panel for even office and commercial ceiling grids.
Catalogue specifications
| Model | Watts | Lumens | Notes |
|---|---|---|---|
| OL-PL48SQ | 48W | 5760 lm | 600×600×25 · 120 lm/W |
| OL-PL36SQ | 36W | 4320 lm | 600×600×25 · 120 lm/W |
Features
- Side-light optic
- Aluminium frame
- UGR 19
Electrical & performance
- PF 0.9
- IP20
- CRI ≥80
- Surge 4KV
- Life 30,000 H
- Voltage 85–256V
Applications
Office, Lobby
Warranty: 1 year
Specs sourced from the official Orient Lighting product catalogue PDF.
